Multi-axis servo hydraulic press (One Shot Forming Press)【MMF-M】

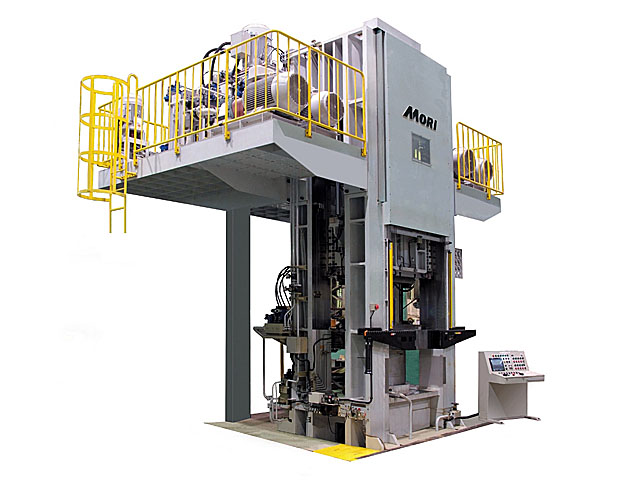

MMF-1000 ton press for a trial of our factory.

MMF-1000 ton press for a trial of our factory.

Developed in cooperation with HATANO SEIMITSU CORPORATION

Developed in cooperation with HATANO SEIMITSU CORPORATION

【Main specifications of theOne-shot forming press.】
Form MMF1000-M33
8axis
MMF500-M32
5axis
MMF200-M32
5axis
Output (kN) 10000 5000 2000
Open height (mm) 1400 1400 1000
No-load speed (mm/S) 150 150 150
Maximum stroke length (mm) 600 500 450
Diameter of main cylinder (mm) φ850 φ620 φ340
The total power (kW) 560 320 120
Type ofOne-shot forming press
MMF(Output ton)─ M(Upper axis number)(Lower axis number)

仕切り

Feature

  • Enables the cost reduction due to high-mix low-volume production.
  • One-shot process from transfer or progressive processing.
  • Promote compact equipment and in lining.
  • Has deployed a system to manage data molding. Each axis position, monitoring the pressure waveform data, even small changes can be confirmed for each axis at the time of molding.
  • According to a Customer’s use, combination change of an axis and servo control system software change are possible.

仕切り

Installation of a trial press

  • Output 10,000kN 8 axis hydraulic servo press,
    Output 2,000kN 5 axis hydraulic servo press,
    We are located at the headquarters as a trial press.
